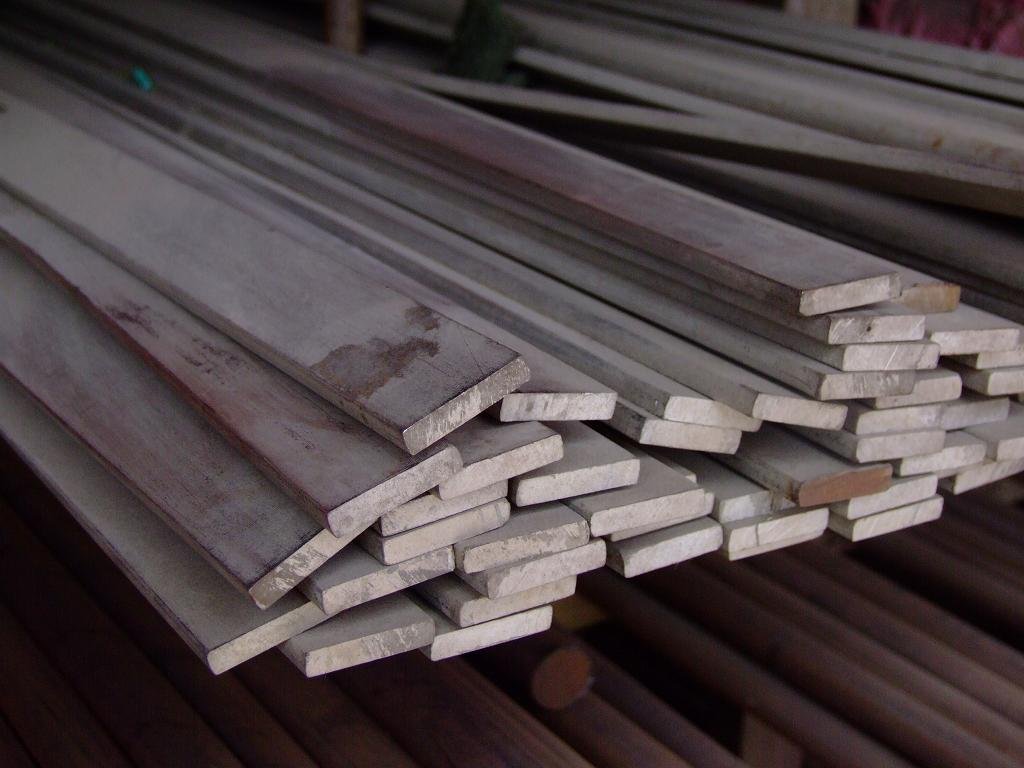

Techical Specification for Flat Bars
| Size (a) mm |
Wall Thickness t (mm) |
Weight in Kg/mtr |
Weight in kg (6mtr Length) |
| 20 |
3.5 |
0.472 |
2.83 |
| 20 |
4 |
0.628 |
3.768 |
| 20 |
6 |
0.942 |
5.652 |
| 25 |
3 |
0.589 |
3.534 |
| 40 |
3 |
0.942 |
5.652 |
| 40 |
4 |
1.256 |
7.536 |
| 40 |
6 |
1.884 |
11.304 |
| 50 |
3.5 |
1.374 |
8.24 |
| 50 |
4 |
1.57 |
9.42 |
| 50 |
6 |
2.355 |
14.13 |
|
Used in metal fabrication especially of ;
- Doors, staircases, burglar proofs
- Windows, grills, safety guards
- Rails, trench covers
|
