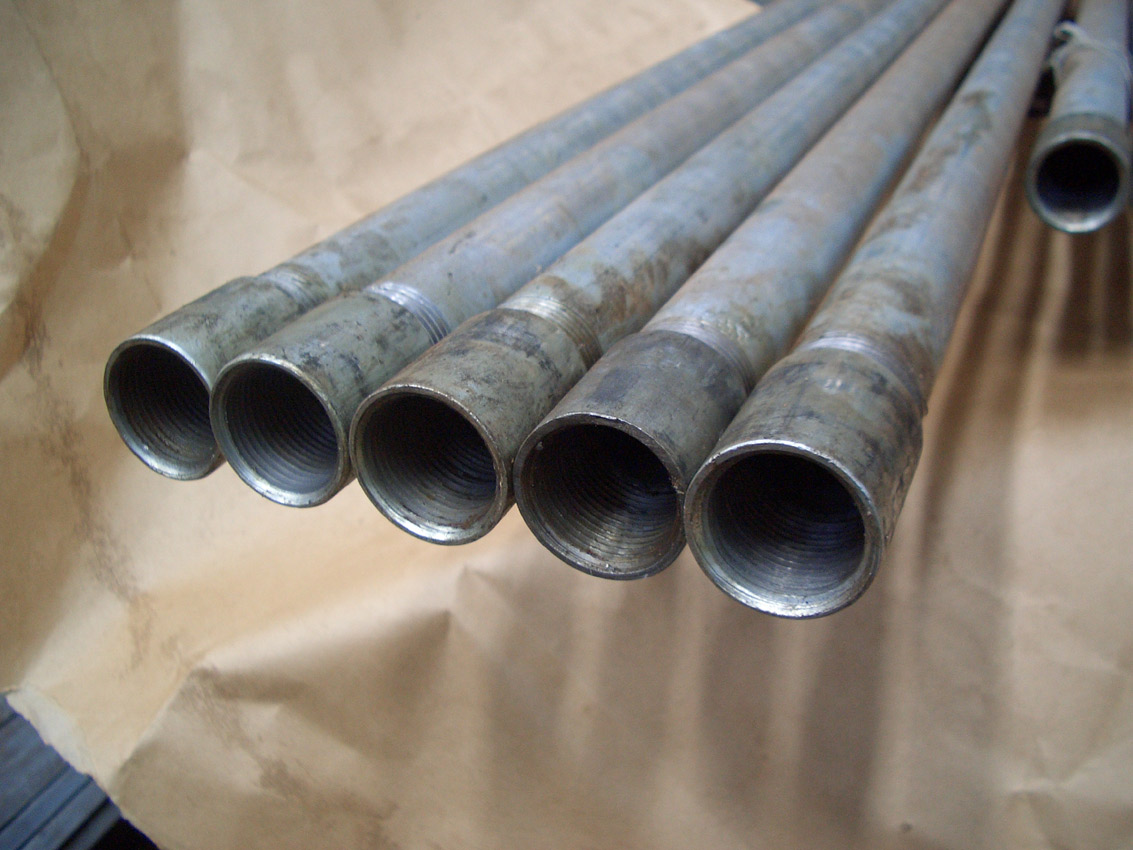

Galvanised Pipes (Threaded & Socketed)
*** |
|
|
BS 1387 / 85 Light
| Nominal Bore Size in mm |
Outside Diameter (O.D) Max. mm |
(O.D) Min. mm |
Thickness mm |
Kg/mtr of Black Tube P/E |
Kg/mtr of Black Tube T/C |
Kg/Mtr of Galv.Tube P/E |
Kg/Mtr of Galv.Tube T/C |
| 15.00 |
21.4 |
21 |
2 |
0.95 |
0.96 |
1 |
1.01 |
| 20.00 |
26.9 |
26.4 |
2.3 |
1.38 |
1.39 |
1.45 |
1.46 |
| 25.00 |
33.8 |
33.2 |
2.6 |
1.98 |
2 |
2.07 |
2.09 |
| 32.00 |
42.5 |
41.9 |
2.6 |
2.54 |
2.57 |
2.65 |
2.68 |
| 40.00 |
48.4 |
47.8 |
2.9 |
3.23 |
3.27 |
3.36 |
3.4 |
| 50.00 |
60.2 |
59.6 |
2.9 |
4.08 |
4.15 |
4.24 |
4.31 |
| 65.00 |
76 |
75.2 |
3.2 |
5.71 |
5.83 |
5.94 |
6.06 |
| 80.00 |
88.7 |
87.9 |
3.2 |
6.72 |
6.89 |
6.98 |
7.16 |
| 100.00 |
113.9 |
113 |
3.6 |
9.75 |
10 |
10.14 |
10.4 |
|
| NOTE |
| 1. |
The tubes in this series are supplied in any lenths from 6.00
(+20F t) to 7.00 (+ 24ft) on request. |
| 2. |
Threading conforms to ISO/R& recommendation |
|
| 3. |
Hydraulic pressure test according to ISO prescription : Bar
(700 Ib / sq in)
Tolerances on thickness + not limited -8% |
| Tolerances on mass |
+ 10% on each tube
+ 8% on each tube
+_4% per load of 150 m (500 ft) |
|
|
|
